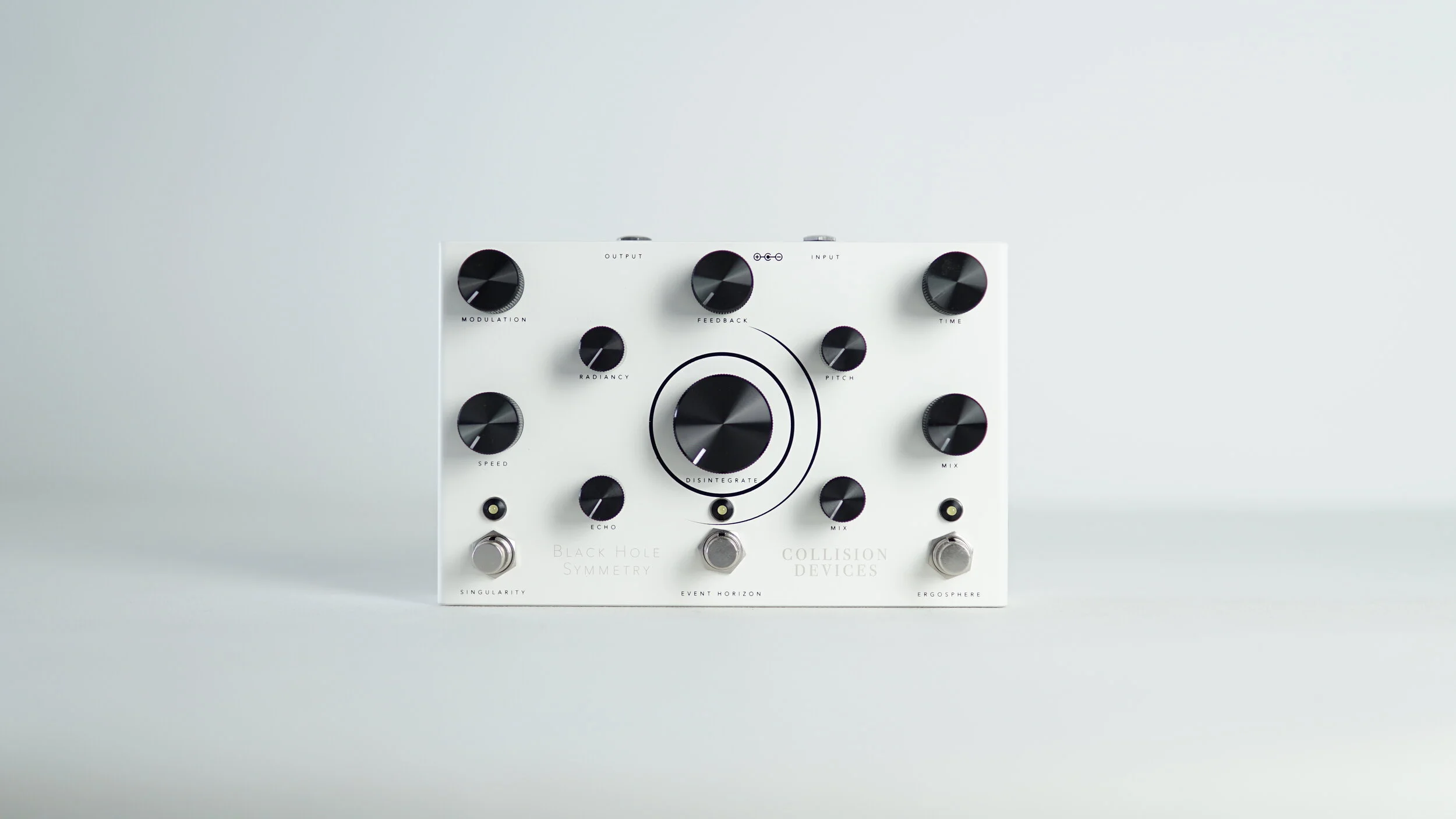

The Black Hole Symmetry is a Modulated Delay / Pitch Shifted Reverb / Destruction Fuzz pedal.
Travel through the Ergosphere, the Event Horizon and the Singularity.
The 3 parts of the pedal which can be played together or separetely.
Each pedal is designed, assembled, tested and numbered by hand in our workshop near Angers, France.
The B.H.S. has a lifetime warranty. Of course.
3 EFFECTS, ONE PEDAL
-
SINGULARITY
Singularity (Destruction Fuzz) : The single setting "Disintegrate" allows you to raise your sound.
Forget the fact that your drummer plays loudly.
Settings :
Disintegrate : Volume setting with a huge fuzz. Protect your ears please.
-

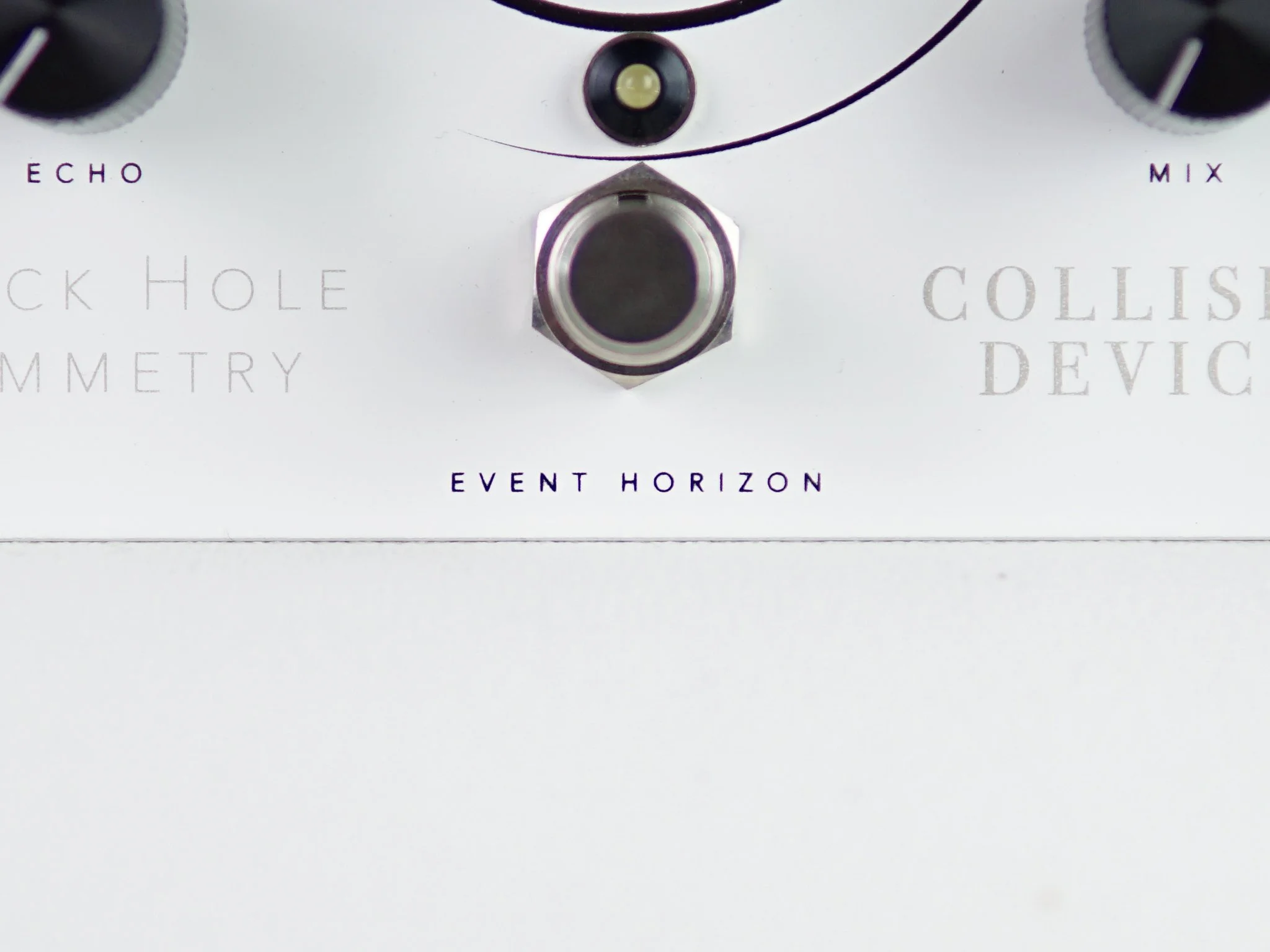

EVENT HORIZON
Event Horizon (Space Reverb) : Long reverb based on the FV1 chip.
Harmonizes the reverb signal with a pitch shifter.
Settings :
Mix : Proportion of wet signal in the mix
Echo : Echo time (max 15s)
Radiancy : Proportion of pitch shifter in the echo signal
Pitch : Shift the pitch of the note
-
ERGOSPHERE
Ergosphere (Modulated Delay) : Based on the PT2399 chip to have a warm echo.
The echo signal is modulated by two oscillators.
Settings :
Mix : Proportion of wet signal in the mix
Time : Time between each repetition (From 0s to 1s)
Feedback : Number of repetitions
Modulation : Proportion of modulation in the delay signal
Speed : Speed of the main oscillator
Trimmer : Speed of the triangle oscillator
Specs
Maximum current draw
250 mA
Imput Impedance
1 MOhm
Size
119 x 116 x 56mm
The use of an isolated power supply is recommended for powering all Collision devices Pedals.
Power supply not included.
The pedal is true bypass
Voltage
+9V DC (négative center)
Output Impedance
1 KOhm
Weight
200gr
reach the infinity
Black Hole Symmetry
Limited edition
